trumpeter Pz.Kpfw Vi Ausf.E sd.Kfz.181 Tiger 1 1/35 late production/Zimmerit -Quick review

Introduction and background AND history

Type Heavy tank
Place of origin Germany
Service history
In service 1942–1945
Wars World War II
Production history
Designer Erwin Aders
Henschel & Son
Designed 1938–1941
Manufacturer Henschel
Unit cost 250,800 RM
Produced 1942–1944
No. built 1,347
Specifications (RfRuK VK 4501H Ausf.E, Blatt: G-330)
Weight 54 tonnes (60 short tons)
57 tonnes (63 short tons) (Ausf. E)
Length 6.316 m (20 ft 8.7 in)
8.45 m (27 ft 9 in) gun forward
Width 3.56 m (11 ft 8 in)
Height 3.0 m (9 ft 10 in)
Crew 5 (commander, gunner, loader, driver, assistant driver)

Armour 25–120 mm (0.98–4.72 in)
Main
armament
1× 8.8 cm KwK 36 L/56
92 AP and HE rounds
Secondary
armament
2× 7.92 mm MG 34
4,500 rounds
4,800 rounds (Ausf. E)
Engine Maybach HL230 P45 V-12
700 PS (690 hp, 515 kW)
Power/weight 13 PS (9.5 kW) / tonne
Suspension Torsion bar
Ground clearance 0.47 m (1 ft 7 in)
Fuel capacity 540 L (140 US gal) including reserve
Operational
range
Road: 195 km (121 mi)
Cross country: 110 km (68 mi)
Speed Maximum, road: 45.4 km/h (28.2 mph)
Sustained, road: 40 km/h (25 mph)
Cross country: 20–25 km/h (12–16 mph)

The Tiger I is a German heavy tank of World War II deployed from 1942 in Africa and Europe, usually in independent heavy tank battalions. Its final designation was Panzerkampfwagen VI Tiger Ausf. E often shortened to Tiger. The Tiger I gave the Wehrmacht its first armoured fighting vehicle that mounted the 8.8 cm KwK 36 gun (not to be confused with the 8.8 cm Flak 36). 1,347 were built between August 1942 and August 1944. After August 1944, production of the Tiger I was phased out in favour of the Tiger II.

While the Tiger I has been called an outstanding design for its time, it was over-engineered, using expensive materials and labour-intensive production methods. The Tiger was prone to certain types of track failures and breakdowns, and was limited in range by its high fuel consumption. It was expensive to maintain, but generally mechanically reliable. It was difficult to transport, and vulnerable to immobilisation when mud, ice and snow froze between its overlapping and interleaved Schachtellaufwerk-pattern road wheels, often jamming them solid. This was a problem on the Eastern Front in the muddy rasputitsa season and during extreme periods of cold.

The tank was given its nickname "Tiger" by Ferdinand Porsche, and the Roman numeral was added after the later Tiger II entered production. The initial designation was Panzerkampfwagen VI Ausführung H (‘‘Panzer VI version H’’, abbreviated PzKpfw VI Ausf. H) where 'H' denoted Henschel as the designer/manufacturer. It was classified with ordnance inventory designation SdKfz 182. The tank was later re-designated as PzKpfw VI Ausf. E in March 1943, with ordnance inventory designation SdKfz 181.

Today, only a handful of Tigers survive in museums and exhibitions worldwide. The Tiger 131 at the UK's Tank Museum, which was captured during the North Africa Campaign, is currently the only one restored to running order.

Design history

Earlier designs

Henschel & Sohn began development of a large tank design in January 1937 when the Waffenamt requested Henschel to develop a Durchbruchwagen ("breakthrough vehicle") in the 30–33 tonne range. Only one prototype hull was ever built and it was never fitted with a turret. The Durchbruchwagen I's general shape and suspension resembled the Panzer III, while the turret resembled the early Panzer IV C turret with the short-barrelled 7.5 cm L/24 cannon.

Before Durchbruchwagen I was completed, a request was issued for a heavier 30-tonne class vehicle with thicker armour; this was the Durchbruchwagen II, which would have had 50 mm (2 in) of frontal armour and mounted a Panzer IV turret with a short-barrelled 7.5 cm L/24 gun. Overall weight would have been 36 tonnes. Only one hull was built and no turret was fitted. Further development of the Durchbruchwagen was dropped in 1938 in favour of the larger and better-armoured VK 30.01 (H) and VK 36.01 (H) designs. Both the Durchbruchwagen I and II prototype hulls were used as test vehicles until 1941.

Another attempt

The VK 30.01 (H) medium tank and the VK 36.01 (H) heavy tank designs pioneered the use of the complex Schachtellaufwerk track suspension system of torsion bar-sprung, overlapped and interleaved main road wheels for tank use. This concept was already common on German half-tracks such as the Sd.Kfz. 7. The VK 30.01 (H) was intended to mount a low-velocity 7.5 cm L/24 infantry support gun, a 7.5 cm L/40 dual purpose anti-tank gun, or a 10.5 cm L/28 field gun in a Krupp turret. Overall weight was to be 33 tonnes. The armour was designed to be 50 mm on frontal surfaces and 30 mm on the side surfaces. Four prototype hulls were completed for testing. Two of these were later modified to build the "Sturer Emil" (12.8 cm Selbstfahrlafette L/61) self-propelled anti-tank gun.

The VK 36.01 (H) was intended to weigh 40 tonnes, with 100 mm (4 in) of armour on front surfaces, 80 mm on turret sides and 60 mm on the hull sides. The VK 36.01 (H) was intended to carry a 7.5 cm L/24, or a 7.5 cm L/43, or a 7.5 cm L/70, or a 12.8 cm L/28 cannon in a Krupp turret that looked similar to an enlarged Panzer IV Ausf. C turret. The hull for one prototype was built, followed later by five more. The six turrets built were never fitted and were used as part of the Atlantic Wall. The VK 36.01 (H) project was discontinued in early 1942 in favour of the VK 45.01 project.

Further improvements

Model reconstruction of Porsche prototype

Combat experience against the French Somua S35 cavalry tank and Char B1 heavy tank, and the British Matilda II infantry tanks during the Battle of France in June 1940 showed that the German Army needed better armed and armoured tanks.

On 26 May 1941, Henschel and Ferdinand Porsche were asked to submit designs for a 45-tonne heavy tank, to be ready by June 1942. Porsche worked on an updated version of their VK 30.01 (P) Leopard tank prototype while Henschel worked on an improved VK 36.01 (H) tank. Henschel built two prototypes: a VK 45.01 (H) H1 with an 8.8 cm L/56 cannon, and a VK 45.01 (H) H2 with a 7.5 cm L/70 cannon.

Final designs

On 22 June 1941, Germany launched Operation Barbarossa, the invasion of the Soviet Union. The Germans were shocked to encounter Soviet T-34 medium and KV-1 heavy tanks, and, according to Henschel designer Erwin Aders: "There was great consternation when it was discovered that the Soviet tanks were superior to anything available to the Heer..

An immediate weight increase to 45 tonnes and an increase in gun calibre to 8.8 cm was ordered. The due date for the new prototypes was set for 20 April 1942, Adolf Hitler's 53rd birthday. Unlike the Panther tank, the designs did not incorporate sloped armour, an innovation taken from the T-34.

Porsche and Henschel submitted prototype designs, each making use of the Krupp-designed turret. They were demonstrated at Rastenburg in front of Hitler. The Henschel design was accepted, mainly because the Porsche VK 4501 (P) prototype design used a troubled gasoline-electric hybrid power unit which needed large quantities of copper for manufacture of its electrical drivetrain components, a strategic war material of which Germany had limited supplies with acceptable electrical properties for such uses. Production of the Panzerkampfwagen VI Ausf. H began in August 1942. Expecting an order for his tank, Porsche built 100 chassis. After the contract was awarded to Henschel, they were used for a new turretless, casemate-style tank destroyer; 91 hulls were converted into the Panzerjäger Tiger (P) in early 1943.

The Tiger was still at the prototype stage when it was first hurried into service, and therefore changes both large and small were made throughout the production run. A redesigned turret with a lower cupola was the most significant change. To cut costs, the submersion capability and an external air-filtration system were dropped.

Design

The Tiger differed from earlier German tanks principally in its design philosophy. Its predecessors balanced mobility, armour and firepower, and were sometimes outgunned by their opponents.

While heavy, this tank was not slower than the best of its opponents. However, at over 50 tonnes dead weight, the suspension, gearboxes, and other such items had clearly reached their design limits and breakdowns were frequent if regular maintenance was not undertaken.

Although the general design and layout were broadly similar to the previous medium tank, the Panzer IV, the Tiger weighed more than twice as much. This was due to its substantially thicker armour, the larger main gun, greater volume of fuel and ammunition storage, larger engine, and a more solidly built transmission and suspension.

Armour

The Tiger I's armour was up to 120 mm on the mantlet.

The Tiger I had frontal hull armour 100 mm (3.9 in) thick, frontal turret armour of 100 mm (3.9 in) and a 120 mm (4.7 in) thick gun mantlet.The Tiger had 60 mm (2.4 in) thick hull side plates and 80 mm armour on the side superstructure/sponsons, while turret sides and rear were 80 mm. The top and bottom armour was 25 mm (1 in) thick; from March 1944, the turret roof was thickened to 40 mm (1.6 in).Armour plates were mostly flat, with interlocking construction. The armour joints were of high quality, being stepped and welded rather than riveted and were made of maraging steel.

Gun

Turmzielfernrohr TZF 9c gun sight

The 56-calibre long 8.8 cm KwK 36 was chosen for the Tiger. A combination of a flat trajectory from the high muzzle velocity and precision from Leitz Turmzielfernrohr TZF 9b sight (later replaced by the monocular TZF 9c) made it very accurate. In British wartime firing trials, five successive hits were scored on a 410 by 460 mm (16 by 18 in) target at a range of 1,100 metres (3,600 ft). Compared with the other contemporary German tank guns, the 8.8 cm KwK 36 had superior penetration to the 7.5 cm KwK 40 on the Sturmgeschütz III and Panzer IV but inferior to the 7.5 cm KwK 42 on the Panther tank under ranges of 2,500 metres. At greater ranges, the 8.8 cm KwK 36 was superior in penetration and accuracy.

The ammunition for the Tiger had electrically fired primers. Four types of ammunition were available but not all were fully available; the PzGr 40 shell used tungsten, which was in short supply as the war progressed.

  • PzGr. 39 (armour-piercing, capped, ballistic cap)
  • PzGr. 40 (armour-piercing, composite rigid)
  • Hl. Gr. 39 (high explosive anti-tank)
  • sch. Sprgr. Patr. L/4.5 (incendiary shrapnel)

Engine and drive

Crew working on the engine through the hatch on the rear hull roof

The rear of the tank held an engine compartment flanked by two separate rear compartments each containing a fuel tank and radiator. The Germans had not developed an adequate diesel engine, so a petrol (gasoline) powerplant had to be used instead. The original engine utilised was a 21.35-litre (1303 cu.in.) 12-cylinder Maybach HL 210 P45 developing 485 kW (650 hp) at 3,000 rpm. Although a good engine, it was underpowered for the vehicle. From the 251st Tiger onwards, it was replaced by the upgraded HL 230 P45, a 23.095 litre (1409 cu.in.) engine developing 521 kW (700 hp) at 3,000 rpm. The main difference between these engines was that the original Maybach HL 210 used an aluminium engine block while the Maybach HL 230 used a cast-iron engine block. The cast-iron block allowed for larger cylinders (and thus, greater displacement) which increased the power output to 521 kW (700 hp). The engine was in V-form, with two cylinder banks set at 60 degrees. An inertia starter was mounted on its right side, driven via chain gears through a port in the rear wall. The engine could be lifted out through a hatch on the rear hull roof. In comparison to other V12 and various vee-form gasoline engines used for tanks, the eventual HL 230 engine was nearly four litres smaller in displacement than the Allied British Rolls-Royce Meteor V12 AFV powerplant, itself adapted from the RR Merlin but de-rated to 448 kW (600 hp) power output; and the American Ford-designed precursor V12 to its Ford GAA V-8 AFV engine of 18 litre displacement, which in its original V12 form would have had the same 27 litre displacement as the Meteor.

The engine drove the front sprockets through a drivetrain connecting to a transmission in the front portion of the lower hull; the front sprockets had to be mounted relatively low as a result. The Krupp-designed 11-tonne turret had a hydraulic motor whose pump was powered by mechanical drive from the engine. A full rotation took about a minute.

Another new feature was the Maybach-Olvar hydraulically controlled semi-automatic pre-selector gearbox. The extreme weight of the tank also required a new steering system. Germany's Argus Motoren, where Hermann Klaue had invented a ring brake in 1940, supplied them for the Arado Ar 96 and also supplied the 55 cm disc. Klaue acknowledged in the patent application that he had merely improved on existing technology, that can be traced back to British designs dating to 1904. It is unclear whether Klaue's patent ring brake was utilised in the Tiger brake design.

The clutch-and-brake system, typical for lighter vehicles, was retained only for emergencies. Normally, steering depended on a double differential, Henschel's development of the British Merritt-Brown systemfirst encountered in the Churchill tank. The vehicle had an eight-speed gearbox, and the steering offered two fixed radii of turns on each gear, thus the Tiger had sixteen different radii of turn. In first gear, at a speed of a few km/h, the minimal turning radius was 3.44 m (11 ft 3 in). In neutral gear, the tracks could be turned in opposite directions, so the Tiger I pivoted in place. There was a steering wheel instead of either a tiller — or, as most tanks had at that time, twin braking levers — making the Tiger I's steering system easy to use, and ahead of its time.

Suspension

Clear view of the Tiger I's Schachtellaufwerk overlapping and interleaved road wheels during production

The suspension used sixteen torsion bars, with eight suspension arms per side. To save space, the swing arms were leading on one side and trailing on the other. There were three road wheels (one of them double, closest to the track's centre) on each arm, in a so-called Schachtellaufwerk overlapping and interleaved arrangement, similar to that pioneered on German half-tracked military vehicles of the pre-World War II era, with the Tiger I being the first all-tracked German AFV built in quantity to use such a road wheel arrangement. The wheels had a diameter of 800 mm (31 in) in the Schachtellaufwerk arrangement for the Tiger I's suspension, providing a high uniform distribution of the load onto the track, at the cost of increased maintenance. Removing an inner wheel that had lost its solid rubber tire (a common occurrence) required the removal of up to nine other wheels first. During the rainy period that brought on the autumn rasputitsa mud season and onwards into the winter conditions on the Eastern front, the roadwheels of a Schachtellaufwerk-equipped vehicle could also become packed with mud or snow that could then freeze. Presumably, German engineers, based on the experience of the half tracks, felt that the improvement in off-road performance, track and wheel life, mobility with wheels missing or damaged, plus additional protection from enemy fire was worth the maintenance difficulties of a complex system vulnerable to mud and ice. This approach was carried on, in various forms, to the Panther and the non-interleaved wheel design for the Tiger II. Eventually, a new 80 cm diameter 'steel' wheel design, closely resembling those on the Tiger II, with an internally sprung steel-rim tire was substituted, and which like the Tiger II, were only overlapped and not interleaved.

Tiger at the Henschel plant is loaded onto a special rail car. The outer road wheels have been removed and narrow tracks put in place to decrease vehicle width, allowing it to fit within the loading gauge of the German rail network.

To support the considerable weight of the Tiger, the tracks were 725 mm (2 ft 4.5 in) wide. To meet rail-freight size restrictions, the outermost roadwheel on each axle (16 total) could be unbolted from a flange  and narrower 520 mm (20 in) wide 'transport' tracks (Verladeketten) installed. The track replacement and wheel removal took 30 minutes for each side of the tank. However, in service, Tigers were frequently transported by rail with their combat tracks fitted, as long as the train crew knew there were no narrow tunnels or other obstructions on the route that would prevent an oversized load from passing, despite this practice being strictly forbidden.

Fording system

The Tiger tank was too heavy for small bridges, so it was designed to ford four-metres deep in water. This required unusual mechanisms for ventilation and cooling when underwater. At least 30 minutes of set-up time was required, with the turret and gun being locked in the forward position, and a large snorkel tube raised at the rear. An inflatable doughnut-shaped ring sealed the turret ring. The two rear compartments (each containing a fuel tank, radiator and fans) were floodable. Only the first 495 units were fitted with this deep fording system; all later models were capable of fording only two metres.

Crew compartment

The internal layout was typical of German tanks. Forward was an open crew compartment, with the driver and radio-operator seated at the front on either side of the gearbox. Behind them the turret floor was surrounded by panels forming a continuous level surface. This helped the loader to retrieve the ammunition, which was mostly stowed above the tracks. Three men were seated in the turret; the loader to the right of the gun facing to the rear, the gunner to the left of the gun, and the commander behind him. There was also a folding seat on the right for the loader. The turret had a full circular floor and 157 cm headroom.

Cost

The main problem with the Tiger was that its production required considerable resources in terms of manpower and material, which led to it being expensive: the Tiger I cost over twice as much as a Panzer IV and four times as much as a StuG III assault gun.. This in part was responsible for the low number produced: 1,347 Tiger I and 492 Tiger II. The German designs were expensive in terms of unit build time, raw materials and Reichsmarks, The closest counterpart to the Tiger from the United States was the M26 Pershing(around 200 deployed to the European Theater of Operations (ETO) during the war and IS-2 from the USSR (about 3,800 built during the conflict).

Although from a technical point of view it was superior to its contemporaries, the low number produced, shortages in qualified crew and the considerable fuel requirement in a context of ever shrinking resources prevented the Tiger I from having a real impact on the war.

Production history

Installing the turret

Production of the Tiger I began in August 1942, initially at a rate of 25 per month and peaking in April 1944 at 104 per month. 1,355 had been built by August 1944, when production ceased. Deployed Tiger I's peaked at 671 on 1 July 1944. It took about twice as long to build a Tiger I as another German tank of the period. When the improved Tiger II began production in January 1944, the Tiger I was soon phased out.

In 1943, Japan bought several specimens of German tank designs for study. A single Tiger I was apparently purchased, along with a Panther and two Panzer IIIs, but only the Panzer IIIs were actually delivered. The undelivered Tiger was loaned to the German Wehrmacht by the Japanese government.

Many modifications were introduced during the production run to improve automotive performance, firepower and protection. Simplification of the design was implemented, along with cuts due to raw material shortages. In 1942 alone, at least six revisions were made, starting with the removal of the Vorpanzer (frontal armour shield) from the pre-production models in April. In May, mudguards bolted onto the side of the pre-production run were added, while removable mudguards saw full incorporation in September. Smoke discharge canisters, three on each side of the turret, were added in August 1942. In later years, similar changes and updates were added, such as the addition of Zimmerit (a non-magnetic anti-mine coating), in late 1943. Due to slow production rates at the factories, incorporation of the new modifications could take several months.

The humorous and somewhat racy crew manual, the Tigerfibel, was the first of its kind for the German Army and its success resulted in more unorthodox manuals that attempted to emulate its style.

Variants

Among other variants of the Tiger, a citadel, heavily armoured self-propelled rocket projector, today commonly known as the Sturmtiger, was built. A tank recovery version of the Porsche Tiger I, and one Porsche Tiger I, was issued to the 654th Heavy Tank Destroyer Battalion, which was equipped with the Ferdinand/Elefant. In Italy, a demolition carrier version of the Tiger I without a main gun was built by maintenance crews in an effort to find a way to clear minefields. It is often misidentified as a BergeTiger recovery vehicle. As many as three may have been built. It carried a demolition charge on a small crane on the turret in place of the main gun. It was to move up to a minefield and drop the charge, back away, and then set the charge off to clear the minefield. There is no verification of any being used in combat.

Another variant was the Fahrschulpanzer VI Tiger tanks (driving school Tiger tanks). These tanks were Tigers with modified engines to run on either compressed Towngas gas (Stadtgas System) or wood gas (Holzgas System). This was due to shortages in fuel supply. They used a mixture of turreted and turretless hulls. They were used to train Tiger tank crews. They were not used in combat.

Designations

Designation Reference Date
Prototypes
VK 45.01 Henschel 28 July 1941
Pz.Kpfw. VI Ausf. H1 (VK 4501) Wa Prüf 6 21 October 1941
VK 4501 (H) Wa J Rue (WuG 6) 5 January 1942
Tiger H1 (VK 4501 – Aufbau fur 8,8 cm Kw.K.Krupp-Turm) Wa Prüf 6 February 1942
Pz.Kpfw. VI (VK 4501/H Ausf. H1 (Tiger)) Wa Prüf 6 2 March 1942
Pz.Kpfw. "Tiger" H Wa J Rue (WuG 6) 20 June 1942
Pz.Kpfw. VI
VK 4501 (H)
Tiger (H) Krupp-Turm mit 8.8 cm Kw.K. L/56 fur Ausf. H1
Wa Prüf 6 1 July 1942
Production
Panzerkampfwagen VI H (Sd.Kfz. 182) KStN 1150d 15 August 1942
Tiger I Wa Prüf 6 15 October 1942
Pz.Kpfw. VI H Ausf. H1 (Tiger H1) 1 December 1942
Panzerkampfwagen VI H Ausf. H1
Panzerkampfwagen Tiger Ausf. E
D656/21+ (Tank manual) March 1943

Pz.Kpfw. Tiger (8,8 cm L/56) (Sd.Kfz. 181)

KStN 1176e

5 March 1943

Panzerkampfwagen Tiger Ausf. E (Sd.Kfz. 181)
Panzerkampfwagen Tiger Ausf. E
D656/22 (Tank manual) 7 September 1944

Hitler's order, dated 27 February 1944, abolished the designation Panzerkampfwagen VI and ratified Panzerkampfwagen Tiger Ausf. E, which was the official designation until the end of the war. For common use it was frequently shortened to Tiger.

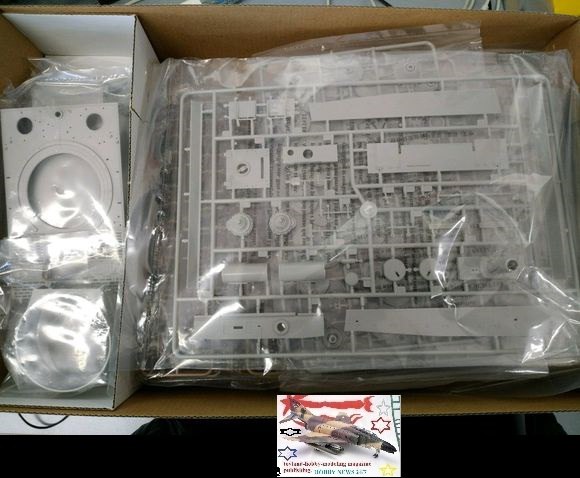

full box

Content box

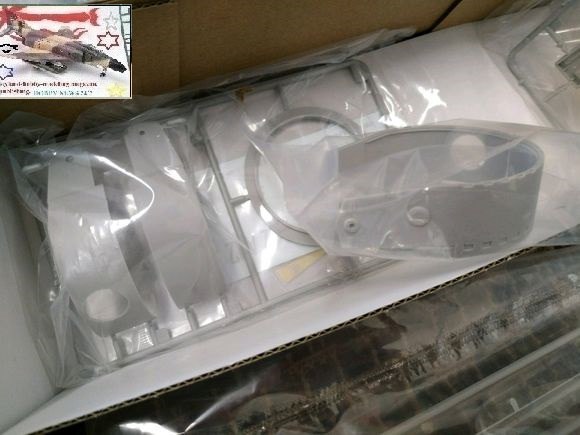

more from the box kit

side box on the kit full box for more part


***Detailed assembly instruction manual***

Detailed assembly instruction manual
Pages number 2-3

Detailed assembly instruction manual
Pages number 4-5

Detailed assembly instruction manual
Pages number 6-7

Detailed assembly instruction manual
Pages number 8-9

Detailed assembly instruction manual
Pages number 10-11

Detailed assembly instruction manual
Pages number 12-13

Detailed assembly instruction manual
Pages number 14-15

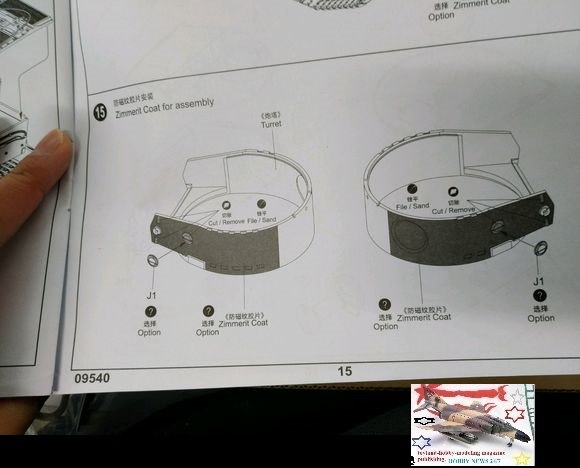

Detailed assembly instruction manual
Pages number 15 ONLY

Detailed assembly instruction manual
Pages number 16-17

Detailed assembly instruction manual
Pages number 18-19

Detailed assembly instruction manual
Pages number 20 END




Marking


plastic parts OF THE KIT

The rear upper part of the body of the tank and the openings of a plume of smoke and gases from the engine of the tank

Body of the tank

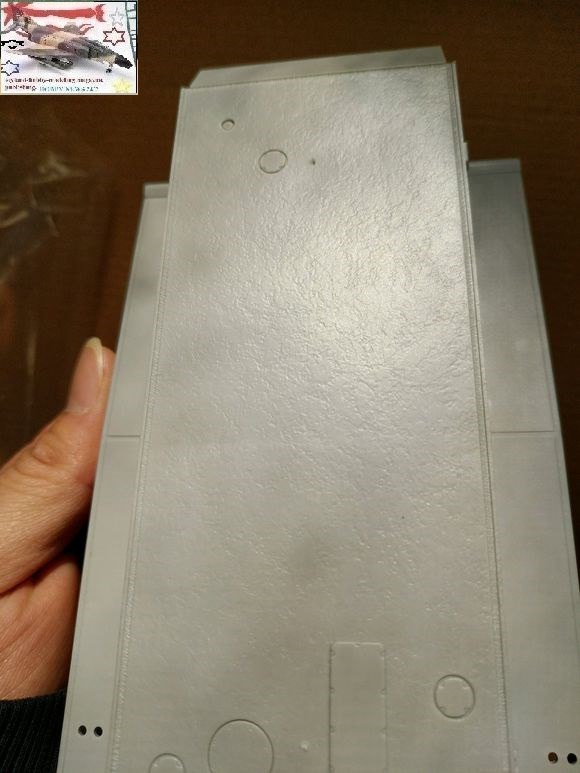

Part of the body of the tank

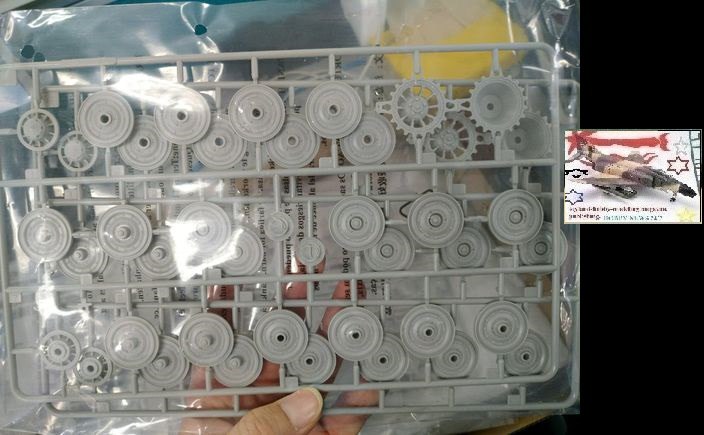

The wheels of the tank and the wheel disks

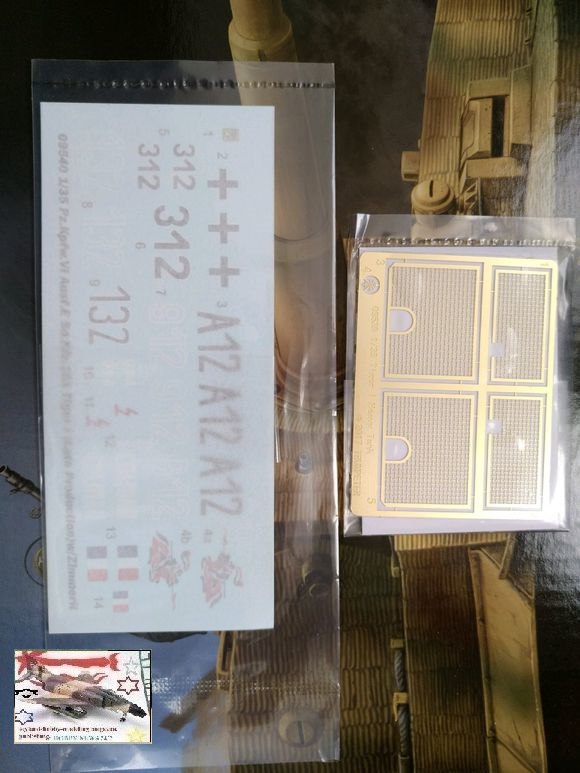

decals + PE parts

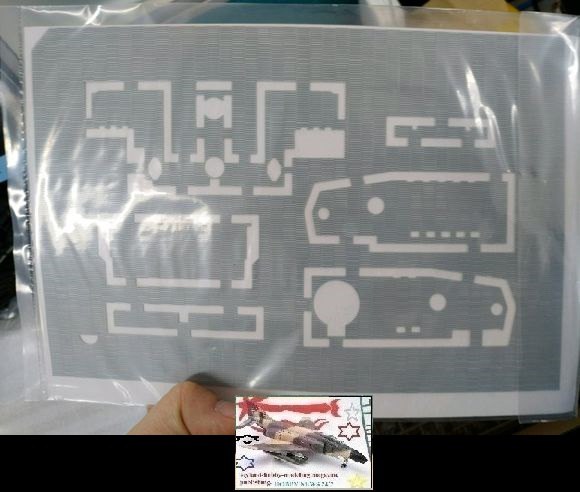

Zimmerit decals

Zimmerit decals LIVE


FULL MODEL

This broad criticism deals with and describes a historic German tank called Tiger 1
In Germany in 1942 it was decided to develop a strong and heavy tank as a weapon of attack and defense for World War II and continued fighting in battles in Germany and other countries As the war expanded and lasted for a long time so was the need for more tanks of this type, this tank was severely beaten and daring from many countries who saw him as a real threat in the war and developed The tank emphasizes its power and size and comes with a lot of advantages to this day and is considered a very good tank offensive and fast, and not only that but also the historical value is very large and has a wide reputation And stable, and Hungary also acquired tanks as if in a high-tech war And became a partner of Germany as aiding the occupation and control and in April 1945 all of Hungary was occupied by the Red Army.

This kit is considered one of the best kits of this year
Here, too, the manufacturer decided to invest resources and a lot of time and thought in meticulous and high quality design of this product

This kit is large and very impressive and rich in many quality parts

A very high quality packaging combined with a graphic image / impressive impressive artistic and beautiful painting

Many of the parts of the kit are protected by such a special white transparent nylon fabric

A large and detailed assembly instruction manual with a bold black inscription

This kit is of a high standard and requires minimal preliminary knowledge and a lot of time and patience

The plastic here is of a high standard and we see it very well in dark gray, thick and high quality
Provides an excellent base for high quality painting. It is recommended to buy high quality paints to get a realistic and natural finish

All parts of the kit from smallest to largest are listed in high definition

The level of detail and accuracy here in this kit is very good and shows many elements of reality and naturalness

The quality of this product is very high and ensures long-term pleasure

This kit is definitely worth the money and gives a particularly high value and educational value to the younger generation for general history and military transportation.
