Copper State Models CSM 35001 1/35 Lanchester Armoured Car BRITISH WW1 ARMOUR-Full review

***Introduction and history***

The Lanchester Armoured Car was a British armoured car derived from the Lanchester Sporting Forty touring car produced during the First World War.

It should not be confused with the later interwar period six-wheeled development.


In 1914, the Lanchester was the second most numerous armoured car in service after the Rolls-Royce. Designed by the Admiralty Air Department for the Royal Naval Air Service Armoured Car Section in France it was intended to support air bases and retrieve downed pilots. A prototype was produced in December 1914 with production following in early 1915.

A number of changes were made; principally strengthening the chassis and suspension, and doubled rear wheels fitted to the rear axle to improve traction, weight distribution. The vehicle had a distinctive circular turret with a narrow horizontal roof with central hatch, steeply sloped at the sides, and continuous sloped bonnet plating. This last, together with a much more compact form than the earlier Rolls Royce Armoured Car achieved by positioning the driver beside the powerful and reliable engine, which featured an epicyclic gearbox) gives the Lancaster a deceptively modern appearance that matches its paper specification when compared with its later inter-war 6×4 version.

Thirty six of the production version were sent to France in May 1915, one twelve-car RNAS squadron served with the Belgian Army. In addition, Belgium received between 10 and 15 cars on loan from the RNAS.

On the Western Front it served its intended purpose despite what were considered advanced features. However, with the rough road conditions and even rougher cross-country treks the 4×2 Lanchester chassis caused difficulties which were never satisfactorily resolved, limiting its usefulness.

In 1915, all thirty six RNAS armoured cars were passed to the British Army. Since the BEF had acquired a variety of armoured cars, and this represented a challenge in terms of maintenance, stores and training it was decided, given trench warfare had severely limited the role that armoured cars could play, that the British Expeditionary Force should standardise on a single type, selecting the Rolls Royce Accordingly, all Lanchester armoured cars were returned to Britain.

After being overhauled, 22 vehicles were supplied to the Imperial Russian Army in December 1915. Of these 19 were later rearmed with a 37-mm naval Hotchkiss gun in place of the standard Vickers machine gun. In January 1916 more Lanchesters arrived with the RNAS expeditionary force deployed in the Caucasus, Romania and Galicia in support of the Russians. RNAS detachments were sent as far as Persia and Turkey and the Lanchesters travelled many thousands of miles until, in early 1918, the expedition force departed Russia via Murmansk.

Jack Livesey in Armoured Fighting Vehicles of World War I and II wrote

“Operating in climates ranging from desert to near-Arctic conditions… during their time in Russia these cars covered 85,295km/53,000 miles. [They] were deployed in a manner that would become the standard for AFV warfare in the 20th Century. Acting as scouts and armed raiders, they operated well forward of the infantry following in their armoured trucks. When operating alongside the infantry they would act as fire-support vehicles…”

Their last operation was in support of the Brusilov Offensive in mid 1917.

Following this deployment Russia descended into civil war and the RNAS armoured car division was withdrawn back to Britain, while Lanchesters still in Russian hands were used by the White Russian forces.

During most of its service life, the Lanchester was considered an admirably fast and reliable vehicle, the only caveat being limitations imposed by the chassis.


Vehicles received by the Russian Army were fitted with a small cupola on the turret and with side shields for the machine gun.

Weight 4.7 t
Length 4.88 m
Width 1.93 m
Height 2.29 m
Crew 3-4

Armour up to 8 mm
Vickers machine gun (turret)
Lewis Gun (stowed inside)
Engine 6-cylinder
60 hp (45 kW) Lanchester petrol engine
Power/weight 12.8 hp/tonne
Suspension 4×2 wheel
Speed 80 km/h



full box with Inner packing

content box all the kit

plastic parts 3

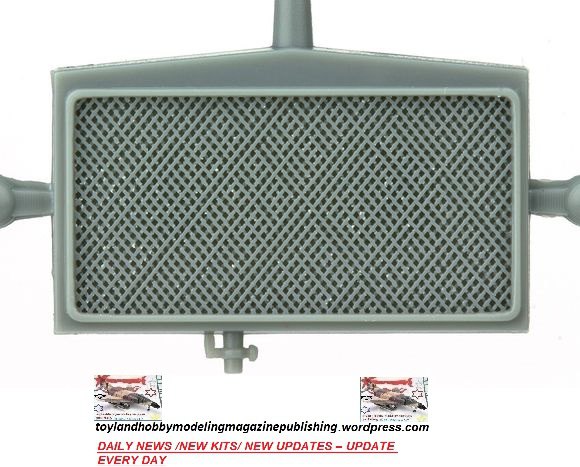

MORE plastic parts ON ZOOM IN 1

MORE plastic parts ON ZOOM IN 2

plastic parts 2

MORE plastic parts ON ZOOM IN 3

plastic parts 1

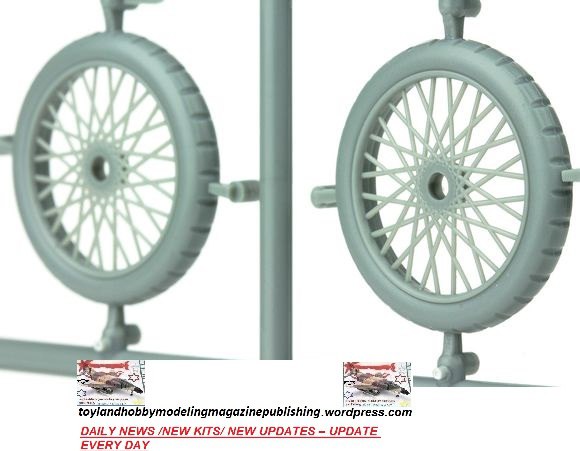

MORE plastic parts ON ZOOM IN 4 /CAR Wheels

MORE plastic parts ON ZOOM IN  5

MORE plastic parts ON ZOOM IN  6

ALL 4 car Wheels



Marking 1/Coloring options

Marking 2

Marking 3 /APPLY decals 1/Coloring options

Marking 4 /APPLY decals 2/Coloring options


Marking 5 / APPLY decals 3 / Coloring options

Marking 6 / APPLY decals 4 / Coloring options

Kit assembly instructions part

Kit assembly instructions page number 13

Kit assembly instructions page number 12

Kit assembly instructions page number 11

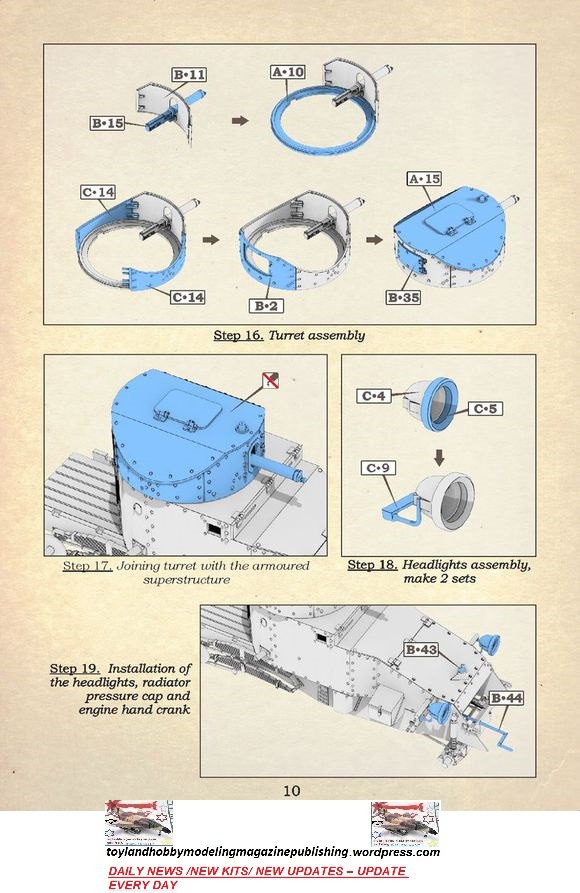

Kit assembly instructions page number 10

Kit assembly instructions page number 9

Kit assembly instructions page number 8

Kit assembly instructions page number 7

Kit assembly instructions page number 6

Kit assembly instructions page number 5

Kit assembly instructions part

Although this is the first model on this scale of this manufacturer, he decided to invest here a lot of resources. A very detailed product design for a long time and thinking about a quality and interesting kit, and also a very intriguing historical subject, the armored vehicle was developed in 1914 to give protection to the British Army during the First World War In December 1914 vehicles were also sold to Belgium, Russia, Romania and France. In time, new improvements and weapons were introduced into the vehicle, a revolving turret and a small cannon. This led to the mass production of armored vehicles that became tanks over time. Strong And discipline for armies in the world and for governments and organizations, the kit is relatively large and rich in detail

This vehicle represents a very significant historical value

The vehicle was also used as a defensive military transport vehicle. It was also built for attack missions in many operations during wartime and gave a quick and stable response, and today it is considered a very fast armored vehicle with not a bad design at all.

The kit comes with high quality packaging and a beautiful graphic image

The instruction manual is highly privatized and very easy to understand

It is highly recommended to buy very strong / high quality paints to get a realistic and natural finish

There is a coloring manual for a very privatized and beautiful kit

This kit is very detailed and precise from the smallest to the largest

High quality plastic and gray color and green tip gives a strong foundation for high quality painting and allows to see real color and is well caught in the plastic parts of the kit

This product is of a very high standard and offers great value for money

This kit is very enjoyable and educational quality

It is highly recommended
